Earth Bar with Single Disconnecting Link
Product imageEarth Bar with Single Disconnecting Link

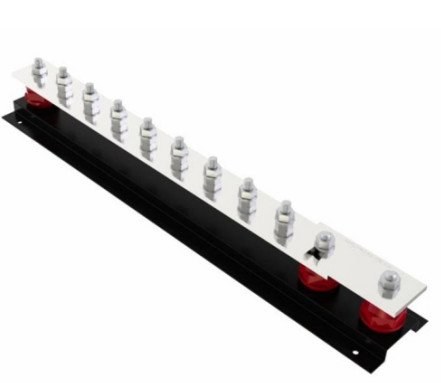

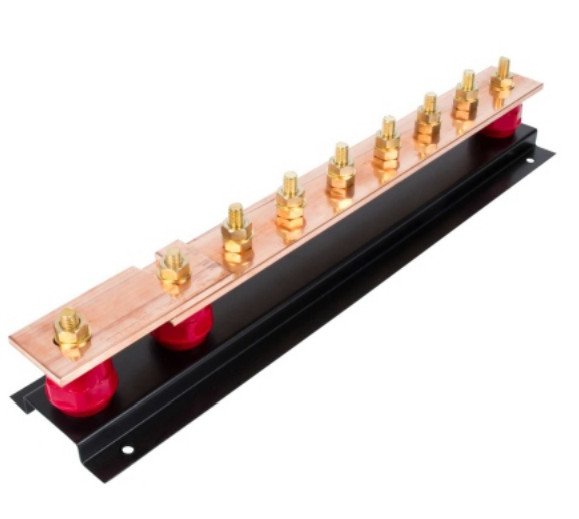

An earth bar with a single disconnecting link combines multiple terminations with one removable connection.
About Earth Bar with Single Disconnecting Link
An earth bar with a single disconnecting link combines multiple terminations with one removable connection.
Where it is used

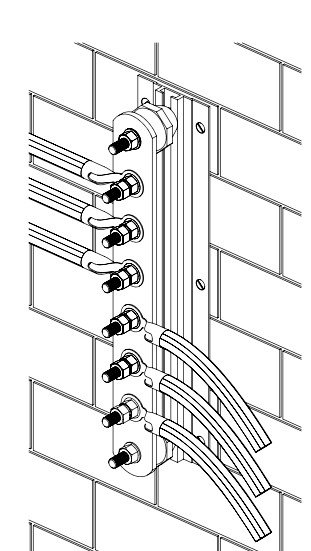

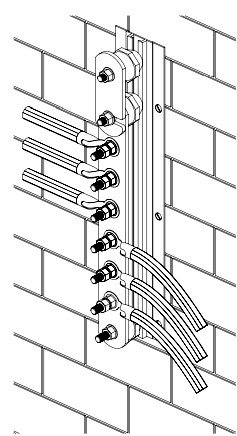

Used where the earthing design requires a defined inspection or test disconnect point.
What to confirm

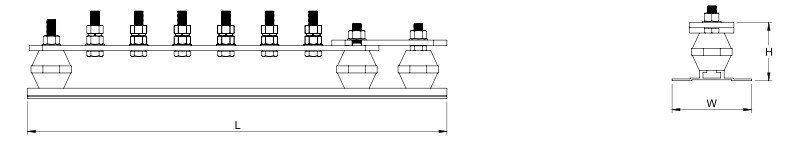

Check bar length, terminal positions, link location, fixing hardware and enclosure or mounting clearance. Refer to the supplied diagrams and tables for variants.
Share the relevant drawing or project specification when requesting a quotation so the selected variant can be checked.

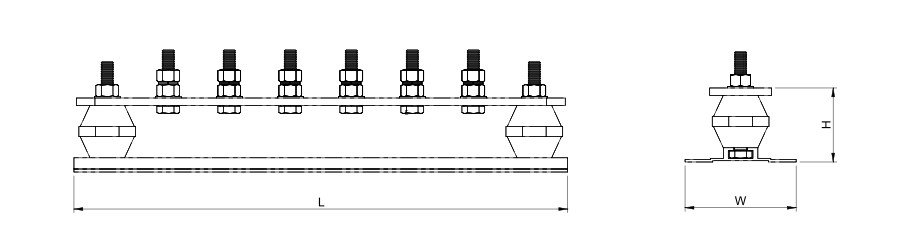

Images, drawings & tables

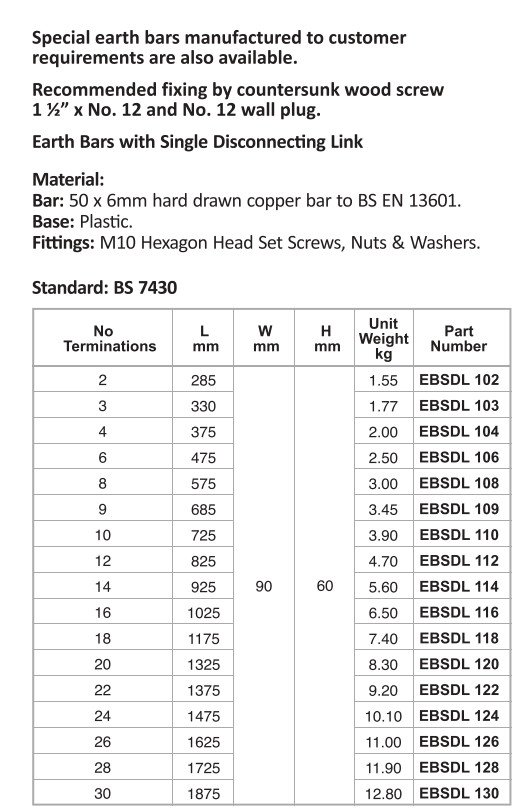

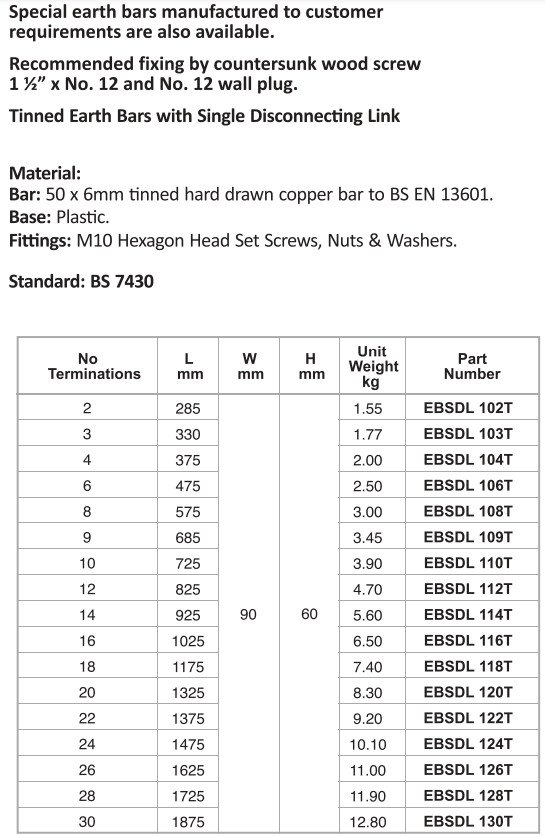

The gallery above contains all 11 images supplied for this product. Use the thumbnails to inspect product views, diagrams and specification tables. Dimensions shown in images should be confirmed for the selected variant.
Frequently asked questions
How do I choose the right earth bar with single disconnecting link?
Check bar length, terminal positions, link location, fixing hardware and enclosure or mounting clearance. Refer to the supplied diagrams and tables for variants.
What information should I send for a quote?
Please include the required dimensions or variant, quantity, application, delivery country and any drawings or specifications.
