Pin Type Insulated Lugs
Product imagePin Type Insulated Lugs
Pin type insulated lugs combine a pin termination with an insulated barrel or sleeve for compatible wire-to-terminal connections.
About Pin Type Insulated Lugs
Pin type insulated lugs combine a pin termination with an insulated barrel or sleeve for compatible wire-to-terminal connections.
Where it is used
Used at suitable terminal blocks and equipment connections where a pin contact and an insulated termination are required.
What to confirm
Match wire cross-section, insulation diameter, pin size and length to the terminal. Confirm the insulation style and crimp tool for the selected lug variant.
Share the relevant drawing or project specification when requesting a quotation so the selected variant can be checked.
Images, drawings & tables

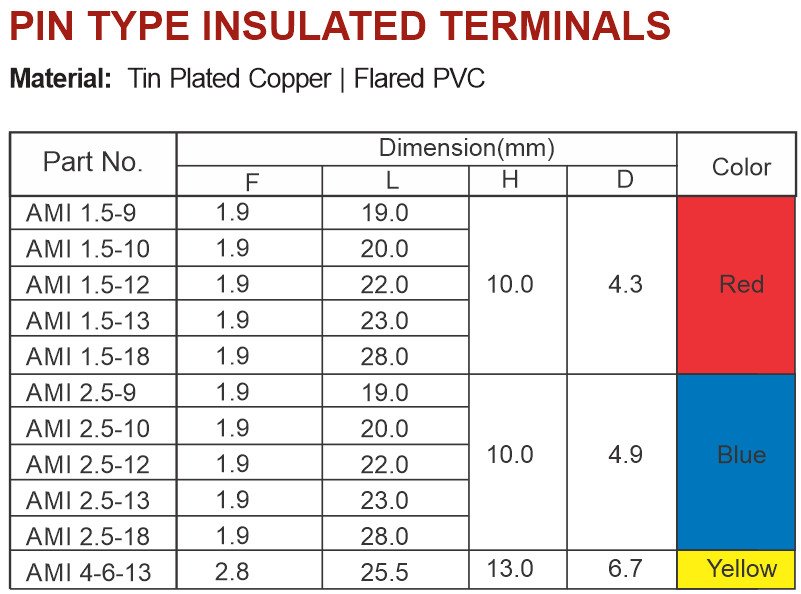

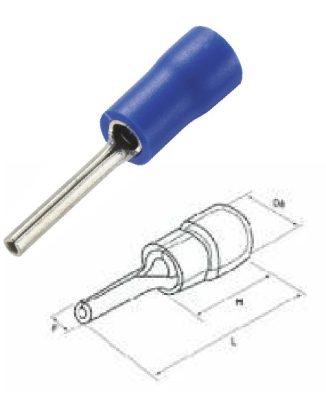

The gallery above contains all 3 images supplied for this product. Use the thumbnails to inspect product views, diagrams and specification tables. Dimensions shown in images should be confirmed for the selected variant.
Frequently asked questions
How do I choose the right pin type insulated lugs?
Match wire cross-section, insulation diameter, pin size and length to the terminal. Confirm the insulation style and crimp tool for the selected lug variant.
What information should I send for a quote?
Please include the required dimensions or variant, quantity, application, delivery country and any drawings or specifications.
